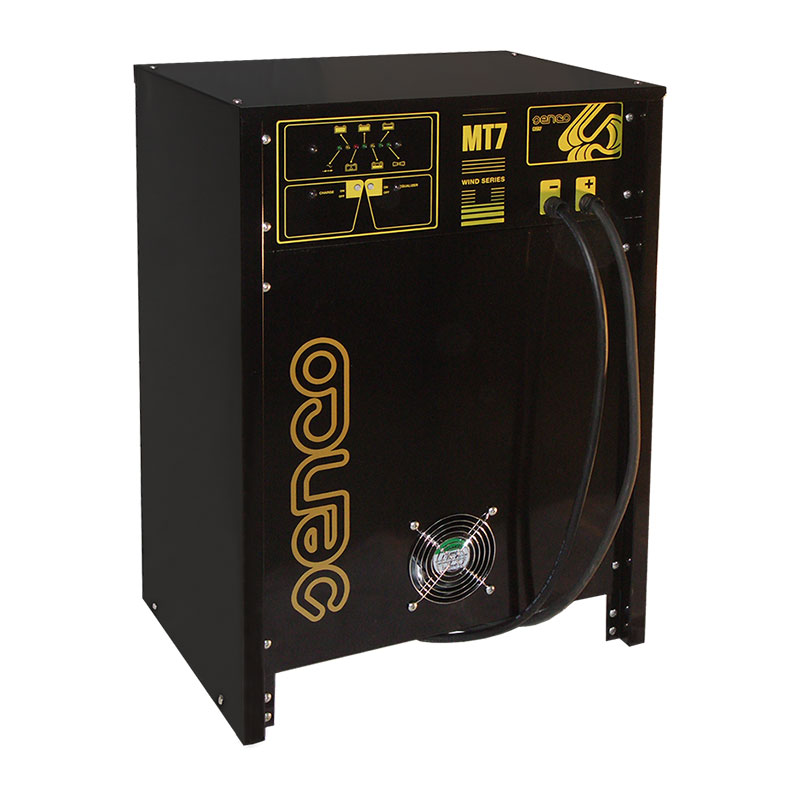

MT7

MT7 contains the experience and the quality of SENCO’s products.
The reliability, the stenght, the power, made MT7 the right battery charger to use on forklifts battery

Technical features

TRANSFORMATION of three-phase power to dispersed flow.
Winding sinsullated in class H, impregnated with furnace dried resins.
Three Switches on the primary in order to adjust to the mains voltage (-5%; Nominal; +5%).
POWER SUPPLY three-phase 400 Volt 50/60 Hz
THREE-PHASE bridge rectifer, made from high inverse voltage silicon diodes, mounted on alluminium cooling fins.
AUTOSTART: starts charging automatically after 5 seconds.
AUTOMATIC SWITCH OFF: if the battery is disconnected during charging, the battery charger disconnects from the mains, annulling all the counted times.
MEMORY: in the event of a power cut, the capacity to memorise the counted times.
INHIBITION: capacity to wait for 20 minutes from the start of charging, irrespective of the battery voltage, in order to allow charging values to be normalised.
FINAL CHARGE: option to choose the end charge times: 2-3-4-5 hours.
EQUALISED CHARGE: can be programmed by means of a double effect button.
SAFETIES: a) Timer with 12-hour calibration for normal charging, b) Timer with 18-hour calibration for equalised charging.
LIGHTS: charge phases visualised by lights (led).
Dimensions: H 750 P 370 L 540
