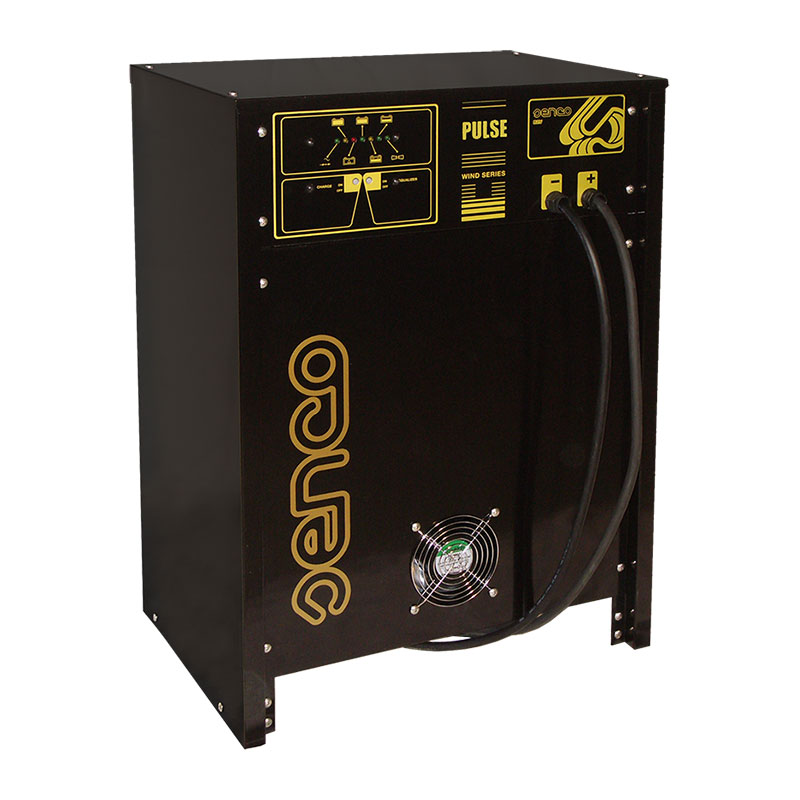

PULSE

PULSE battery charger with innovative WaWp charging curve allows to charge battery in less time.
With WaWp curve electricity is saved compared to the Wa-WoWa curves.
PULSE’s potential is similar to high frequency chargers but with the reliability of traditional charger.

Positive effects:
• LESS BATTERY MAINTENANCE
• ELECTRICITY SAVING
• LONGER BATTERY LIFE

Technical features

TRANSFORMATION of three-phase power to dispersed flow.
Winding sinsullated in class H, impregnated with furnace dried resins.
Three Switches on the primary in order to adjust to the mains voltage (-5%; Nominal; +5%).
POWER SUPPLY three-phase 400 Volt 50/60 Hz.
THREE-PHASE bridge rectifer, made from high inverse voltage silicon diodes, mounted on alluminium cooling fins.
AUTOSTART: starts charging automatically after 5 seconds.
AUTOMATIC SWITCH OFF: if the battery is disconnected during charging, the battery charger disconnects from the mains, annulling all the counted times.
MEMORY: in the event of a power cut, the capacity to memorise the counted times.
INHIBITION: capacity to wait for 20 minutes from the start of charging, irrespective of the battery voltage, in order to allow charging values to be normalised.
FINAL CHARGE: option to choose the end charge times: 2-3-4-5 hours.
EQUALISED CHARGE: can be programmed by means of a double effect button.
SAFETIES: a) Timer with 12-hour calibration for normal charging, b) Timer with 18-hour calibration for equalised charging.
LIGHTS: charge phases visualised by lights (led).

Dimensions: H 750 P 370 L 540
